IQ Base Transmitter print data sheet

Guest & Staff Paging System

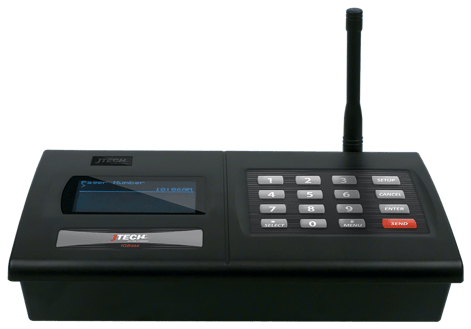

IQ Base Transmitter - Pager Transmitter

 The IQ Base™ Transmitter is a fast and reliable pager transmitter designed to work with all JTECH pagers.  With UHF frequency, your signal has a unique system ID which eliminates interference.

The IQ Base is can manage up to 9999 pagers and supports all of our guest and staff pagers including:  QuietCall® , SmartCall® IQ, StaffCall® IQ and GuestCall® IQ pagers.



Additional Features

The IQ Base Transmitter is beautifully designed with an 8-line LED back lit interface and quick setup.




UHF Technology

Up to 2 miles of line-of-site coverage with unique ID to prevent signal interference.

Durable

Built with high-quality materials for maximum durability and industry leading performance.

Bright LED Display

Easy-to-read LED back lit digital display. Quick buttons make repeated communications a breeze.



Smart Alerts

Out-of-Range and Search ensures guest contact and minimizes pager loss.

IQ Manager, Staff & Guest Pagers

Supports the full line of IQ series pagers.


Specifications



Display

  • 2 x 3 inch 8 line display
  • Blue LED back lit digital screen
  • Water-resistant polyurethane

Electrical

  • Frequency range: 450 - 468 MHZ
  • FCC Identifier:WDC-IQBASE-N
  • IC Identifier:7752A-IQBASE-N
  • Channel Spacing: 12.5KHz
  • Speed / Baud Rate: 512/1200 bps

Interfaces

  • Serial: DB9- DCE (female) Connector
  • Data Rates: 1200, 9600, 38400, 57600
  • Characters: 8 Data Bits
  • Stop Bits: 1

Power

  • DC 12V, 3.5A, SMPS
  • RF Output (Watts): 2 Watts
  • Format: POCSAG

Extended Range Technology

  • UHF Frequency
  • Unique System ID eliminates interference
  • Up to 2 miles of of site coverage


Dimensions

IQ Base Transmitter

Length: 9.37 inches (23.7 cm)

Width: 5.5 inches (14 cm)

Height: 1.75 inches (4.3 cm)

Weight: 1.6 lbs (0.72 k)



 Works With:


GuestCall® Pagers
