ServerCall®
Transmitter & Cancel Panel print data sheet

For The Kitchen

ServerCall Transmitter - Server Paging

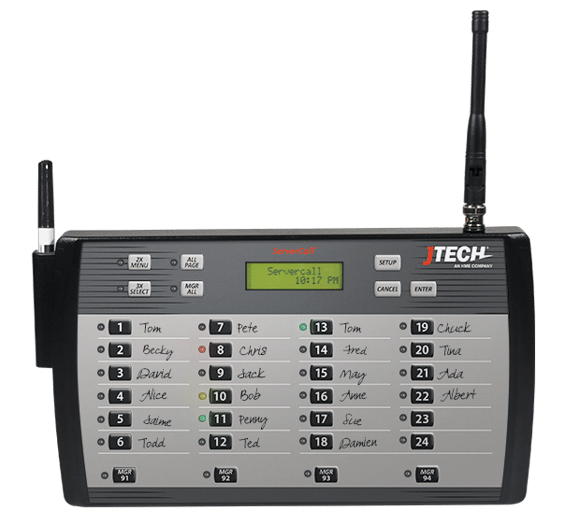

The ServerCall® 12, 24 (shown), 48, or 72  Transmitter and Cancel Panels for your kitchen helps you manage food orders more effectively and profitably.   With the ServerCall Transmitter One-Touch paging and Auto-Recall features you can streamline traffic and your kitchen staff can notify servers only when they're needed.

Add the Cancel panel to allow servers to conveniently cancel the page when the food is picked up without interrupting the kitchen workflow.

 The ServerCall® Transmitter has programmable "Duty Alerts" for quick reminders and communication.



Additional Features

The ServerCall® Transmitter and Cancel Panel are available in 12, 24, 48 and 72 button options.




Auto-Recall

Automatically pages the server up to 3 times when food is ready for pick-up. The manager is automatically paged after the 3rd time to provide further assistance.

All-Page

Allows managers to quickly send a message to the entire staff for shift meetings, menu changes, etc.

Restaurant Tough

Engineered with durable plastic made to withstand the high-traffic restaurant environment.



Manager Button

Instantly calls the manager to provide additional assistance as necessary.

Multiple Pager / Transmitter Options

Mix and match pagers for the best solution to fit your budget and operation.




Specifications



Display

  • Available in 12, 24, 48 and 72 button panel
  • Tri-color server lights for speed-of-service alerts
  • Dry erase panel with marker holder
  • Water-resistant polyurethane

Electrical

  • Frequency range: 450 - 468 MHZ
  • FCC Identifier: QBTLTK - SCT
  • IC Identifier: 5269A - LTKSCT
  • Channel Spacing: 12.5 KHz
  • Speed / Baud Rate: 512/1200 bps

Interfaces

  • Serial: DB9- DCE (female) Connector
  • Data Rates: 1200, 9600, 38400, 57600
  • Telco:  RJ11 4-pin connector to PBX

Network

  • Interface: Ethernet 10Base-T
  • Connector: RJ45
  • Protocols: TCP/IP, ARP, ICMP
  • Indicators (LED): Link & Activity
  • Management: SNMP, Telnet, Serial, Internal Web Server and Windows based utility for configuration.

Power

  • DC 12V, 3.5A, SMPS
  • RF Output (Watts): 2 Watts
  • Format: POCSAG

Extended Range Technology

  • UHF Frequency
  • Unique System ID eliminates interference
  • Up to 2 miles of of site coverage


Dimensions

ServerCall Transmitter - Server Paging
ServerCall® Transmitter
12 Button Panel

ServerCall Transmitter - Server PagingServerCall® Transmitter
24 Button Panel

CancelPanel_24_frnt_18mkr_v4_350px-web-1.pngServerCall® Cancel Panel
24 Button Panel

Length: 8.26 inches (20.9 cm)

Width: 14.96 inches (37.9 cm)

Height: 5.9 inches (14.9 cm)

Weight: 4.28 lbs (1.9 k)




Manager Pager Options

Try these staff / manager pagers to go with your ServerCall® Kitchen paging system:

alpha-numeric-text-pager

Alpha-Numeric Pager


StaffCall IQ®





Rugged Pager



Try Our Pagers To Go With Your ServerCall® Transmitter.

The ServerCall Transmitter supports up to 999 pagers. Choose the type of pager that meets your needs.
