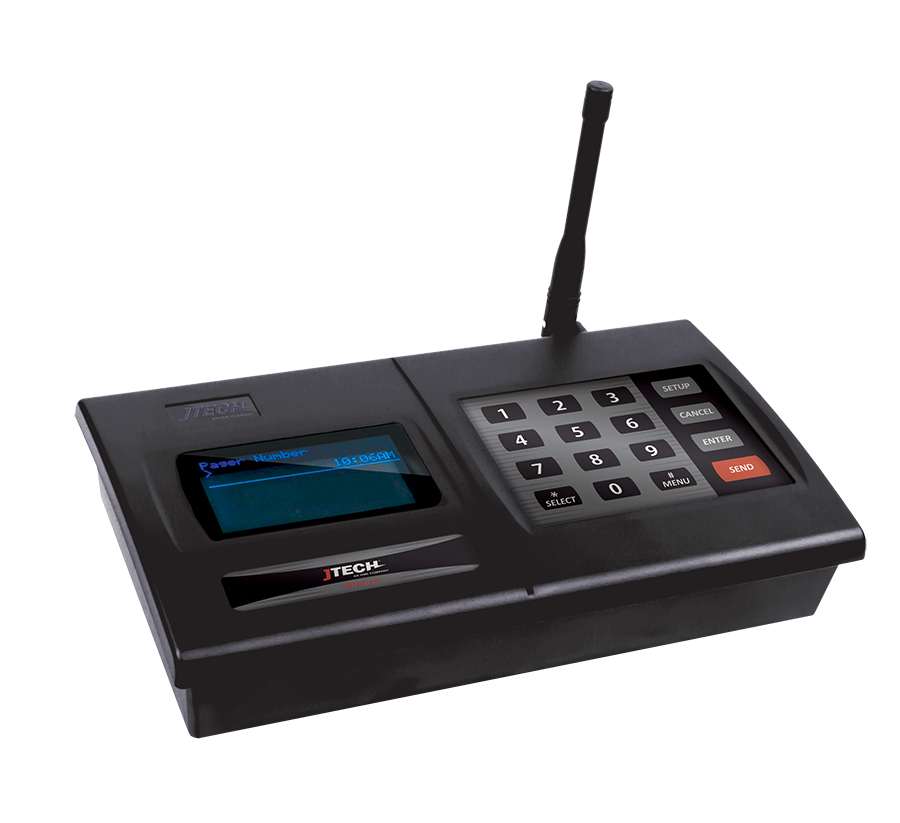

IStation Transmitter print data sheet

Master Controller

The IStation Transmitter is our most robust transmitter. Designed for quick and easy coordination of front-of-house and back-of-house operations.

The IStation makes data logging effortless for capturing useful analytics such as wait times, peak hours and communication patterns.

Integrates with pagers, HostConcepts™ Waitlist App and popular 3rd party KDS or POS systems like MICROS, NCR Aloha,QSR, DineTime, Brink, PAR and more!

IStation Master Controller is network addressable with repeater, teleconnect and page-by-phone capability. Privacy and hard-to-reach areas are easily solved with the IStation.

Contact Us

Easily Integrate IStation with other paging systems and software applications for complete control over your business.


IStation



Additional Features



CloudAlert

Turn email alerts to SMS text and pager messages to instantly alert your staff, servers and managers when action is needed.

HostConcepts™

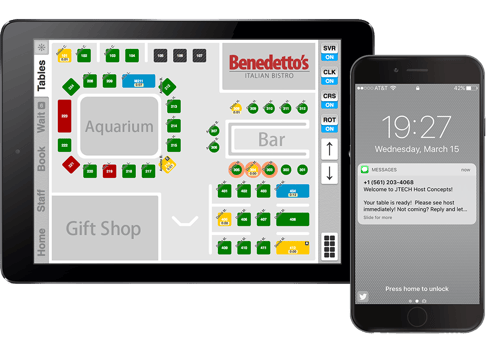

Reservations & Waitlist Management - sync the IStation to enable guests to put themselves on your waitlist with TapAhead Seating, send guests alerts, track reservations, manage seating, staff and more!

Guest Communication Pagers & Text

Use direct-to-SMS texting or any of our GuestCall® pagers to notify guests that their table is ready.

Manager & Staff Communication Pagers

Send alpha-numeric text and notifications to pagers to quickly notify staff.

TableScout™

Service & Alerts - table status alert system to speed table turns.

POS and KDS Flexible Integration

Third-party POS and KDS system integration capability.

Data Logging
Track and store useful data such as wait times, peak hours and pager communication behavior to streamline operations.




Specifications



Display

  • 2 x 3 inch 8 line display
  • Blue LED backlit digital screen
  • Water-resistant polyurethane

 Electrical

  • Frequency range: 450 - 468 MHZ
  • FCC Identifier: WDC-ISTATION-N
  • IC Identifier: 7752A-ISTATION-N
  • Channel Spacing: 12.5 KHz
  • Baud Rate: 512/1200 bps

Interfaces

  • Serial: DB9- DCE (female) Connector
  • Data Rates: 1200, 9600, 38400, 57600
  • Characters: 8 Data Bits
  • Stop Bits: 1
  • Telco:  RJ11 4-pin connector to PBX

Network

  • Interface: Ethernet 10Base-T
  • Connector: RJ45
  • Protocols: TCP/IP, ARP, ICMP
  • Indicators (LED): Link & Activity
  • Management: SNMP, Telnet, Serial, Internal Web Server and Windows based utility for configuration.

 Power

  • DC 12V, 3.5A, SMPS
  • RF Output (Watts): 2 Watts
  • Paging format: POCSAG

Extended Range Technology

  • UHF Frequency
  • Unique System ID eliminates interference
  • Up to 2 miles of site coverage

MutiCast Routing

  • Connect multiple IStations to extend your coverage.

IStation Transmitter

IStation Transmitter

Length: 9.37 inches (23.7 cm)

Width: 5.5 inches (14 cm)

Height: 1.75 inches (4.3 cm)

Weight: 1.6 lbs (0.72 k)




Optional Keyboard

Send messages to guests or staff pagers or SMS text.






Works With:

GuestCall Pagers

Guest Pagers


HostConcepts™



SmartCall Messenger
